Fan Oven Element - 2500W Stock Number: ES478527

Spare part for select models of Rangemaster, Falcon and La Cornue ovens

Read more

Manufactured by Original Quality Component

(This part fits select models)

Will this part fit my Appliance?

Does it fit?
Enter your model number and select from the below list
Need help finding your appliance model number?

Check this part fits your appliance

2. Enter your model number

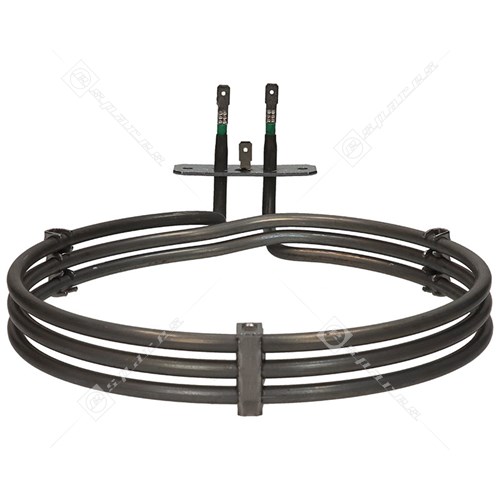

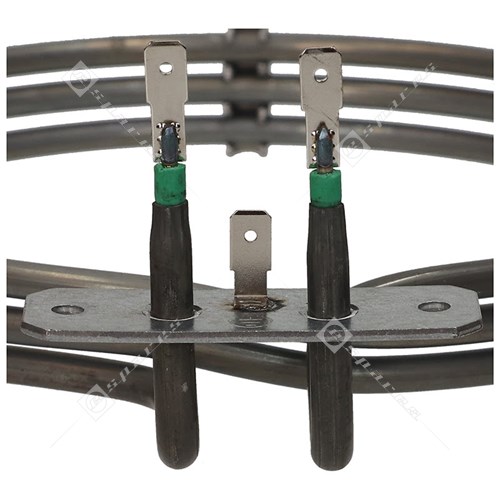

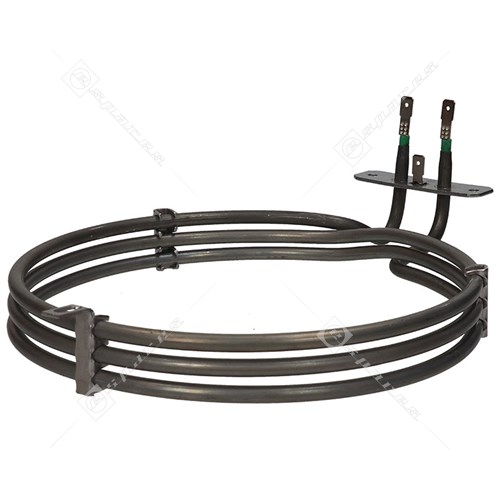

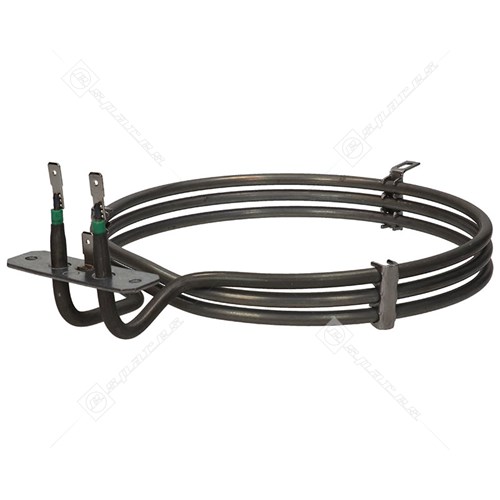

Fan Oven Element - 2500W

The function of the fan oven element is to heat the oven cavity. When the cooker knob is turned on for your electric cooker, electricity will flow to the element which then proceeds to heat up. Once the element reaches the desired temperature, the electricity flow switches on and off to maintain the temperature.

If the internal element filament burns out, this can cause the element to short circuit - and will lead it to fail. Potential signs that the element has blown can be visual things, such as a split, bulge, or blow hole on the element.

eSpares has the replacement fan oven element, that could soon be yours, to help get your fan oven back to the required temperature - so you can continue to make your delicious meals!

Specification:

  • 3 Turns
  • 2500 Watts
  • Height: 253 mm
  • Width: 192 mm
  • Bracket: 70 mm
  • Tags: 25 mm

Spare part suitable for select models of Rangemaster, Falcon and La Cornue ovens.

Please check the list of suitable models using your serial number to ensure that this spare part will fit your appliance.

Ask a Question

5 Questions and 5 Answers

There were 2 wires available from the front of the oven (when opened) but no earth wires. So I want to seek advice on whether the back of the rangemaster requires removing to search for earth wires.

By BO - Essex - 11 January 2020
  • eSpares Staff from eSpares
    eSpares Staff at eSpares says...

    If you have a connection on the element in between the electrical connection then it requires an earth lead, if not then it would normally use the cavity which would be earthed.

Answer this question
By lolly - - 12 November 2013
  • Christopher from eSpares
    Christopher at eSpares says...

    The yellow and green connector (if used) goes on the bracket. The other two connectors can be fitted either way and will not cause a problem.

Answer this question

I need a fan oven element for a Leisure Zenith 60, could you tell me if you have any in stock?.

By kobe - - 08 March 2009
  • Rory from eSpares
    Rory at eSpares says...

    Hi Kobe, I'll need your Zenith 60's ten digit serial number in order to find the right element for you (Zenith 60 is a range of cookers). For help finding it, use our guide: http://www.espares.co.uk/findingmodelnumbers.aspx#a1

Answer this question
By stuck - suffolk - 07 March 2009
  • Rory from eSpares
    Rory at eSpares says...

    Hi Stuck, I'll need your Roma 50's ten digit serial number in order to find the right element for you (Roma 50 is a range of cookers). For help finding it, use our guide: http://www.espares.co.uk/findingmodelnumbers.aspx#a1

Answer this question

I have a Leisure Rangemaster 110 that is approximately 8-10 years old, I think it was purchased in 2000. The Fan oven element burned out a few weeks ago, I went to a local supplier who siold me a new element made by Zanussi and said this would work ok. The Fan oven worked ok for about two weeks and then stopped heating up. I carried out an ohms meter test on the element and this is ok. I found that the Thermal cut-out is open circuit on an ohms meter test. The local supplier said that to replace the thermal cut out, the serial number of the Leisure Rangemaster 110 in cream would be required. I cannot find the original invoice or hand books etc to find the serial number and I cannot find it on the appliance, perhaps you can tell me where to find it. I cannot find a thermal cut-out on your website. I have attempted to attach pictures of the thermal cut-out that is 250 degrees C, but the brouse section will not open in your add images section, if you need them, perhaps they will attach when you e-mail back to me. Best regards, Martin Coleman

By Swaffy - Steyning West Sussex - 16 November 2008
  • Samara from eSpares
    Samara at eSpares says...

    Hi Swaffy, There are quite a few different serial number of the Rangemaster 110 - here is a link to all the different serial numbers: http://www.espares.co.uk/list/cookers-and-hobs/leisure/p/1092/433?l=R We've definitely got thermal cut ours for quite a few of these serial numbers. We've got a guide to finding your model/serial number which can be found here: http://www.espares.co.uk/findingmodelnumbers.aspx Hopefully one of these hints will help you find the number that we need to get you the right part. Once you've got that serial number please do come back and search our site. If you can't find the part you need please take a moment to fill out our part not listed form and we'll be happy to try and source the part for you. http://www.espares.co.uk/partnotlisted.aspx

Answer this question
